CDPX
-
cartridge seals, double faces.
Installation drawings and sizes of CDPN.pdf

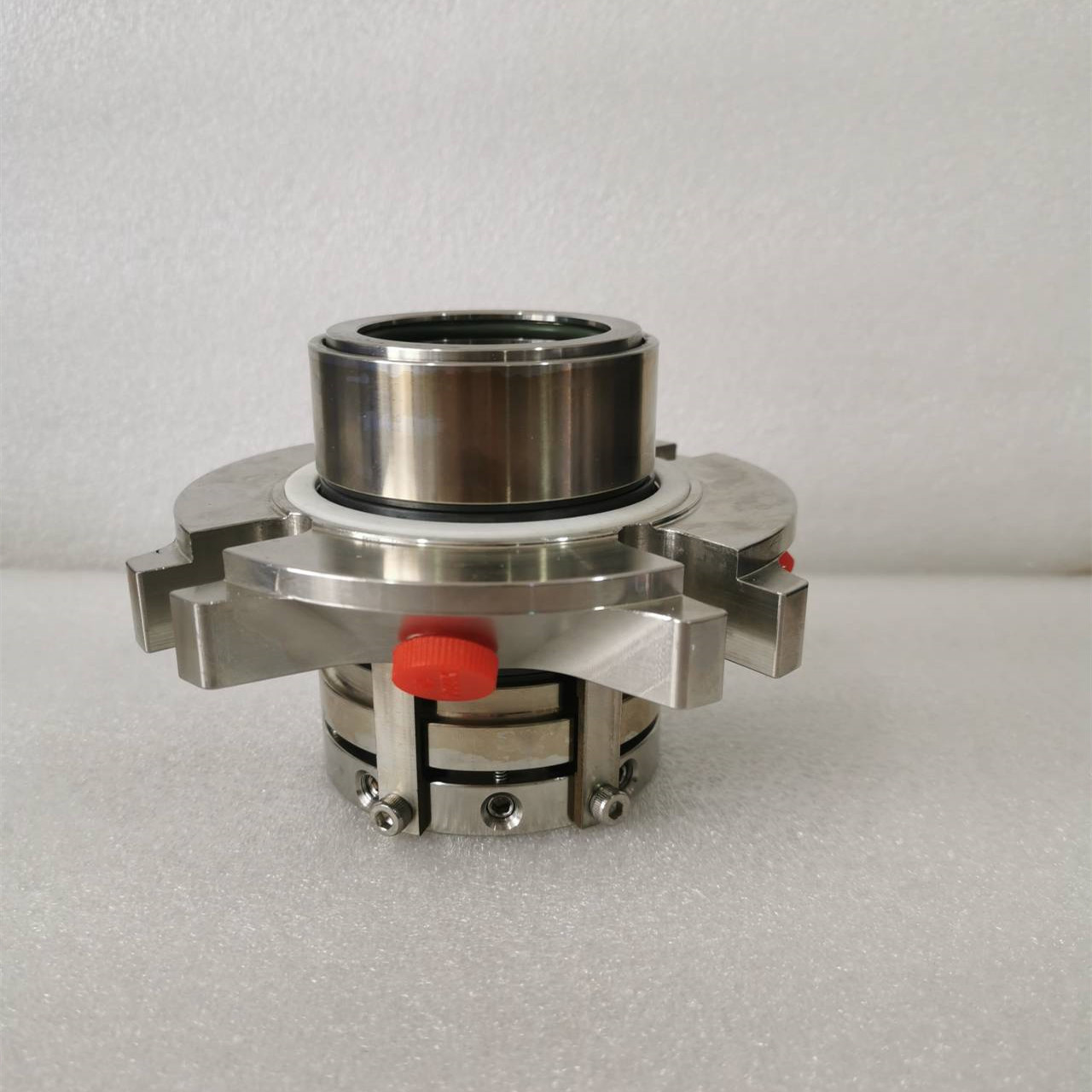

The CDPX, double seal faces cartridge seal, multiple spring, insert seal faces.
Please contact us if you have needs.
Installation size and drawing of CDPX Dual Cartridge Seals
|
|
|
|
d |
Dz |
D |
E |
d3 min |
d3 min+ |
d3 max |
G min |
G max |
H max |
l3 |
l4 |
K max |
|
1.000 |
4.125 |
2.375 |
0.927 |
1.625 |
1.665 |
1.937 |
2.937 |
3.625 |
0.500 |
1.209 |
2.020 |
0.04 |
|
1.125 |
4.250 |
2.375 |
0.927 |
1.750 |
1.790 |
2.062 |
2.937 |
3.750 |
0.500 |
1.209 |
2.020 |
0.04 |
|
1.250 |
4.375 |
2.500 |
0.927 |
1.875 |
1.915 |
2.187 |
3.062 |
3.875 |
0.500 |
1.209 |
2.020 |
0.04 |
|
1.375 |
4.375 |
2.625 |
0.927 |
2.000 |
2.040 |
2.312 |
3.186 |
3.875 |
0.500 |
1.209 |
2.020 |
0.04 |
|
1.500 |
5.000 |
2.832 |
0.852 |
2.250 |
2.290 |
2.500 |
3.375 |
4.500 |
0.500 |
1.090 |
2.226 |
0.04 |
|
1.625 |
5.000 |
2.832 |
0.852 |
2.375 |
2.415 |
2.500 |
3.375 |
4.500 |
0.500 |
1.090 |
2.226 |
0.04 |
|
1.750 |
5.250 |
3.022 |
0.852 |
2.500 |
2.540 |
2.750 |
3.562 |
4.750 |
0.500 |
1.090 |
2.226 |
0.04 |
|
1.875 |
5.250 |
3.022 |
0.852 |
2.625 |
2.665 |
2.750 |
3.562 |
4.750 |
0.500 |
1.090 |
2.226 |
0.04 |
|
2.000 |
5.500 |
3.386 |
0.852 |
2.750 |
2.790 |
3.000 |
3.937 |
5.000 |
0.500 |
1.150 |
2.250 |
0.04 |
|
2.125 |
5.750 |
3.687 |
0.852 |
2.875 |
2.915 |
3.312 |
4.375 |
5.125 |
0.625 |
1.150 |
2.250 |
0.04 |
|
2.250 |
5.750 |
3.687 |
0.852 |
3.000 |
3.040 |
3.312 |
4.375 |
5.125 |
0.625 |
1.150 |
2.250 |
0.04 |
|
2.375 |
6.000 |
3.937 |
0.852 |
3.125 |
3.165 |
3.562 |
4.625 |
5.375 |
0.625 |
1.150 |
2.250 |
0.04 |
|
2.500 |
7.000 |
4.312 |
0.926 |
3.375 |
3.435 |
3.875 |
5.000 |
6.375 |
0.625 |
1.250 |
2.510 |
0.06 |
|
2.625 |
7.000 |
4.312 |
0.926 |
3.500 |
3.560 |
3.875 |
5.000 |
6.375 |
0.625 |
1.250 |
2.510 |
0.06 |
|
2.750 |
7.000 |
4.312 |
0.926 |
3.625 |
3.685 |
3.875 |
5.000 |
6.375 |
0.625 |
1.250 |
2.510 |
0.06 |
|
2.875 |
7.500 |
4.937 |
0.926 |
3.750 |
3.810 |
4.500 |
5.625 |
6.812 |
0.625 |
1.250 |
2.510 |
0.06 |
|
3.000 |
7.500 |
4.937 |
0.926 |
3.875 |
3.935 |
4.500 |
5.625 |
6.812 |
0.625 |
1.250 |
2.510 |
0.06 |
|
3.125 |
7.500 |
4.937 |
0.926 |
4.000 |
4.060 |
4.500 |
5.625 |
6.812 |
0.625 |
1.250 |
2.510 |
0.06 |
|
3.250 |
8.000 |
5.312 |
0.926 |
4.125 |
4.185 |
4.875 |
6.000 |
7.312 |
0.625 |
1.250 |
2.510 |
0.06 |
|
3.375 |
8.000 |
5.312 |
0.926 |
4.250 |
4.310 |
4.875 |
6.000 |
7.312 |
0.625 |
1.250 |
2.510 |
0.06 |
|
3.500 |
8.000 |
5.312 |
0.926 |
4.375 |
4.435 |
4.875 |
6.000 |
7.312 |
0.625 |
1.250 |
2.510 |
0.06 |
|
|
||||||||||||
|
d |
Dz |
D |
E |
d3 min |
d3 min+ |
d3 max |
G min |
G max |
H max |
l3 |
l4 |
K max |
|
24 |
104.8 |
60.3 |
23.5 |
40 |
41 |
46 |
74.6 |
92 |
12 |
30.7 |
51.3 |
1 |
|
25 |
104.8 |
60.3 |
23.5 |
41 |
42 |
49.2 |
74.6 |
92 |
12 |
30.7 |
51.3 |
1 |
|
28 |
108 |
60.3 |
23.5 |
44 |
45 |
52.4 |
74.6 |
95.3 |
12 |
30.7 |
51.3 |
1 |
|
30 |
111 |
63.5 |
23.5 |
46 |
47 |
55.6 |
77.8 |
98.4 |
12 |
30.7 |
51.3 |
1 |
|
32 |
111 |
63.5 |
23.5 |
48 |
49 |
55.6 |
77.8 |
98.4 |
12 |
30.7 |
51.3 |
1 |
|
33 |
111 |
63.5 |
23.5 |
49 |
50 |
55.6 |
77.8 |
98.4 |
12 |
30.7 |
51.3 |
1 |
|
35 |
111 |
66.7 |
23.5 |
50.8 |
51.8 |
58.7 |
80.9 |
98.4 |
12 |
30.7 |
51.3 |
1 |
|
38 |
127 |
71.9 |
21.6 |
57.2 |
58.2 |
63.5 |
85.7 |
114.3 |
12 |
27.7 |
56.5 |
1 |
|
40 |
127 |
71.9 |
21.6 |
57.2 |
58.2 |
63.5 |
85.7 |
114.3 |
12 |
27.7 |
56.5 |
1 |
|
43 |
127 |
71.9 |
21.6 |
60.3 |
61.3 |
63.5 |
85.7 |
114.3 |
12 |
27.7 |
56.5 |
1 |
|
45 |
133.4 |
76.7 |
21.6 |
63.5 |
64.5 |
69.8 |
90.5 |
120.7 |
12 |
27.7 |
56.5 |
1 |
|
48 |
133.4 |
76.7 |
21.6 |
66.7 |
67.7 |
69.8 |
90.5 |
120.7 |
12 |
27.7 |
56.5 |
1 |
|
50 |
133.4 |
76.7 |
21.6 |
68 |
69 |
69.8 |
90.5 |
120.7 |
12 |
27.7 |
56.5 |
1 |
|
53 |
139.7 |
86 |
21.6 |
71 |
72 |
76.2 |
100 |
127 |
12 |
29.2 |
57.2 |
1 |
|
55 |
146 |
93.7 |
21.6 |
73 |
74 |
84.1 |
111.1 |
130.2 |
16 |
29.2 |
57.2 |
1 |
|
58 |
146 |
93.7 |
21.6 |
76.2 |
77.2 |
84.1 |
111.1 |
130.2 |
16 |
29.2 |
57.2 |
1 |
|
60 |
152.4 |
100 |
21.6 |
79.4 |
80.4 |
90.5 |
117.5 |
136.5 |
16 |
29.2 |
57.2 |
1 |
|
63 |
177.8 |
109.5 |
23.5 |
85.7 |
87.2 |
98.4 |
127 |
161.9 |
16 |
31.8 |
63.8 |
1.5 |
|
66 |
177.8 |
109.5 |
23.5 |
88.9 |
90.4 |
98.4 |
127 |
161.9 |
16 |
31.8 |
63.8 |
1.5 |
|
70 |
177.8 |
109.5 |
23.5 |
92.1 |
93.6 |
98.4 |
127 |
161.9 |
16 |
31.8 |
63.8 |
1.5 |
|
75 |
190.5 |
125.4 |
23.5 |
98.5 |
100 |
114.3 |
142.9 |
173 |
16 |
31.8 |
63.8 |
1.5 |
|
80 |
190.5 |
125.4 |
23.5 |
101.6 |
103.1 |
114.3 |
142.9 |
173 |
16 |
31.8 |
63.8 |
1.5 |
|
85 |
203.2 |
135 |
23.5 |
108 |
109.5 |
123.7 |
152.4 |
185.7 |
16 |
31.8 |
63.8 |
1.5 |
|
ANSI |
||||||||||||
|
d |
Dz |
D |
E |
d3 min |
d3 max |
G min |
G max |
H max |
l3 |
l4 |
K max |
|
|
1.125 |
4.975 |
3.174 |
0.906 |
2.625 |
2.850 |
3.750 |
4.437 |
0.500 |
1.229 |
2.000 |
0.04 |
|
|
1.375 |
5.328 |
3.413 |
0.898 |
2.875 |
3.100 |
4.000 |
4.812 |
0.500 |
1.250 |
2.000 |
0.04 |
|
|
1.750 |
6.750 |
4.413 |
1.058 |
3.500 |
4.100 |
5.000 |
6.250 |
0.500 |
1.196 |
2.119 |
0.04 |
|
|
1.875 |
6.750 |
4.413 |
1.058 |
3.625 |
4.100 |
5.000 |
6.250 |
0.500 |
1.196 |
2.119 |
0.04 |
|
|
2.125 |
7.600 |
4.663 |
0.892 |
3.875 |
4.225 |
5.375 |
6.875 |
0.625 |
1.396 |
2.000 |
0.04 |
|
|
2.500 |
8.250 |
5.413 |
1.137 |
4.500 |
5.100 |
6.125 |
7.562 |
0.625 |
1.451 |
2.187 |
0.06 |
|
|
2.625 |
8.250 |
5.413 |
1.137 |
4.625 |
5.100 |
6.125 |
7.562 |
0.625 |
1.451 |
2.187 |
0.06 |
|
|
2.750 |
8.250 |
5.413 |
1.137 |
4.625 |
5.100 |
6.125 |
7.562 |
0.625 |
1.451 |
2.187 |
0.06 |
|
